Headache Rack with Tool Box for Semi Truck — Diamond Plate Aluminum, 68in x 80in

Name: Headache Rack with Tool Box for Semi Truck — Diamond Plate Aluminum, 68in x 80in
Brand: Cargo Control Center
SKU: CRCT6880-CHFT-CC
Price: 1699.75 USD
Availability: OutOfStock

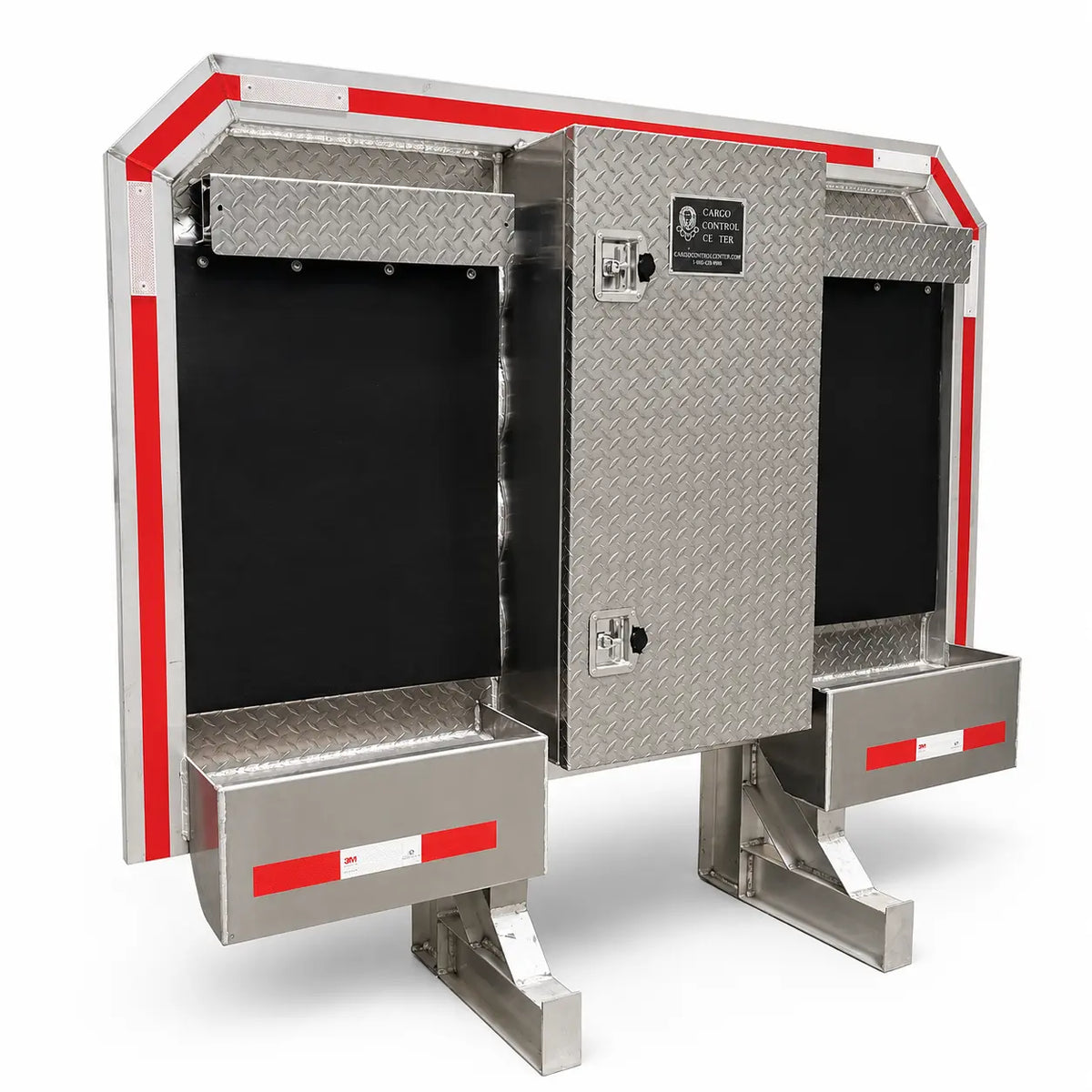

Aluminum headache rack with tool box for semi truck — 68x80 diamond plate cab rack

Headache rack tool box open showing 3 interior shelves — diamond plate aluminum cab rack

Back view of the aluminum headache rack with tool box, showing the flat rear panel and support legs

Close-up of the chain hanger bracket with a row of slots for tie-down chains or binders

Dimensional line drawing of the headache rack with tool box, showing width, height, depth and mounting measurements

$1,699.75 $1,850.00 Save $150

SKU: CRCT6880-CHFT-CC Out of Stock

5000 series 1/8" diamond plate aluminum, 68" × 80" — fits sleeper and day cab semi trucks. Includes a lockable Mini-Vault tool box, 2 chain hangers, 2 half trays, and 3 interior shelves. 220 lbs.

5.0 62 Google reviewsView on Google

Our Truck or Freight

Once it's back in stock, our own truck delivers orders of $750 or more, free, to any address within 80 miles of Huntley. Farther out, we ship it by freight carrier because of its size or weight. After you submit a quote request, our team will contact you to confirm shipping cost before your order is finalized.

Out of stock right now

You can still send the quote request. We will come back with the price and the date this one lands. Call (224) 806-3123 if you want that date today.

Ordering multiple units? Quantity is included in your freight quote.

In stock now in ALUMINUM HEADACHE RACKS 68 X 80

Headache Rack for Semi Truck — Aluminum, Chain Hangers & Tray, 68in x 80in $1,395.75 See all ALUMINUM HEADACHE RACKS 68 X 80 →

(224) 806-3123 — or call us directly.

Guaranteed Safe Checkout

Shipping Policy Return & Refund Policy

Freight quotes come back within one business day, with the exact cost and delivery date.

Field-Tested, Not Just Listed Every product in our catalog runs on real flatbed loads before it ships.

About This Product

Built from 5000 series 1/8" diamond plate aluminum, this headache rack mounts behind the cab on sleeper and day cab semi trucks. The center Mini-Vault tool box adds lockable, weather-sealed storage. Chain hangers on both sides hold up to 12 tie-down chains or binders each.

Installation requires 22" of catwalk clearance. Drivers can self-install with basic hand tools, or use the Cab Rack Installation Kit (sold separately) for a faster mount.

Technical Details

Overall Size 68" (H) × 80" (W)

Weight 220 lbs

Material 5000 series 1/8" diamond plate aluminum alloy

Catwalk Clearance Required 22"

Fitment Sleeper cab and day cab semi trucks

Tool Box Dimensions 16" × 24" × 44"

Chain Hanger Capacity 12 per side (24 total)

Key Features

Lockable Mini-Vault Tool Box

16" × 24" × 44" diamond plate box with 2 T-lock handles and an airtight rubber weather seal.

Dual Chain Hangers

12 slots per side. Holds up to 24 tie-down chains or binders total.

3 Interior Shelves

Built into the tool box to hold tools and small accessories.

2 Open Half Trays

Extra exterior storage on both sides of the rack.

5000 Series Diamond Plate Aluminum

1/8" gauge aluminum. Handles daily loading without denting or corroding.

Important Notice

Not a Front-End Protection Device

Headache racks are not a front-end protection device and do not meet the requirements of FMCSA/DOT CFR 393.114a. All loads must be secured per FMCSA CFR 393.100–393.132. Install on trucks only — not on trailers.
