Cargo Load Lock Bar 89-105in — Ratcheting Steel Bar for Dry Vans

Name: Cargo Load Lock Bar 89-105in — Ratcheting Steel Bar for Dry Vans
Brand: Cargo Control Center
SKU: DV-GST-CC
Price: 19.75 USD
Availability: OutOfStock

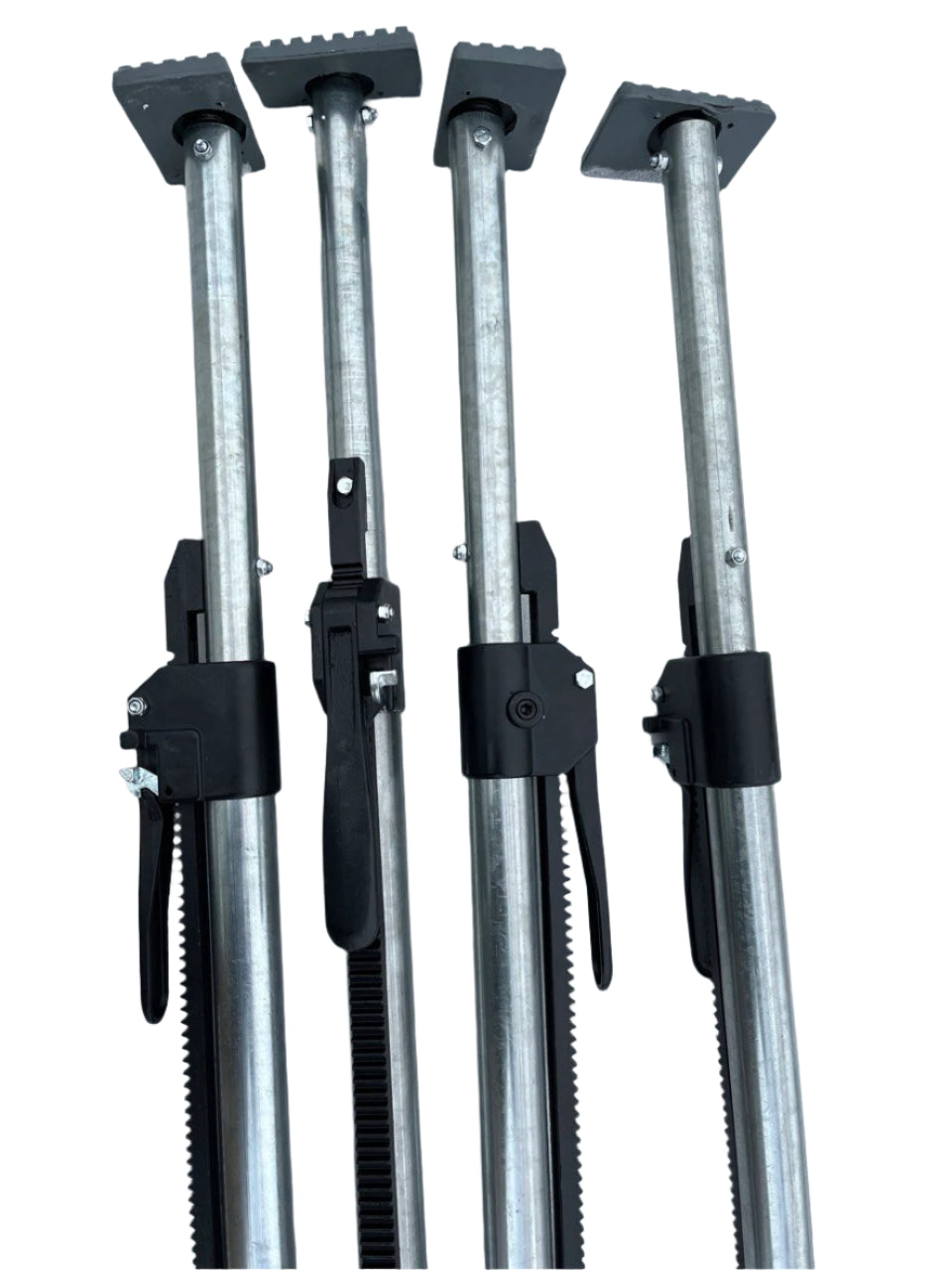

Four steel load lock bars stood upright, showing the rubber foot pads at top and ratchet mechanisms below.

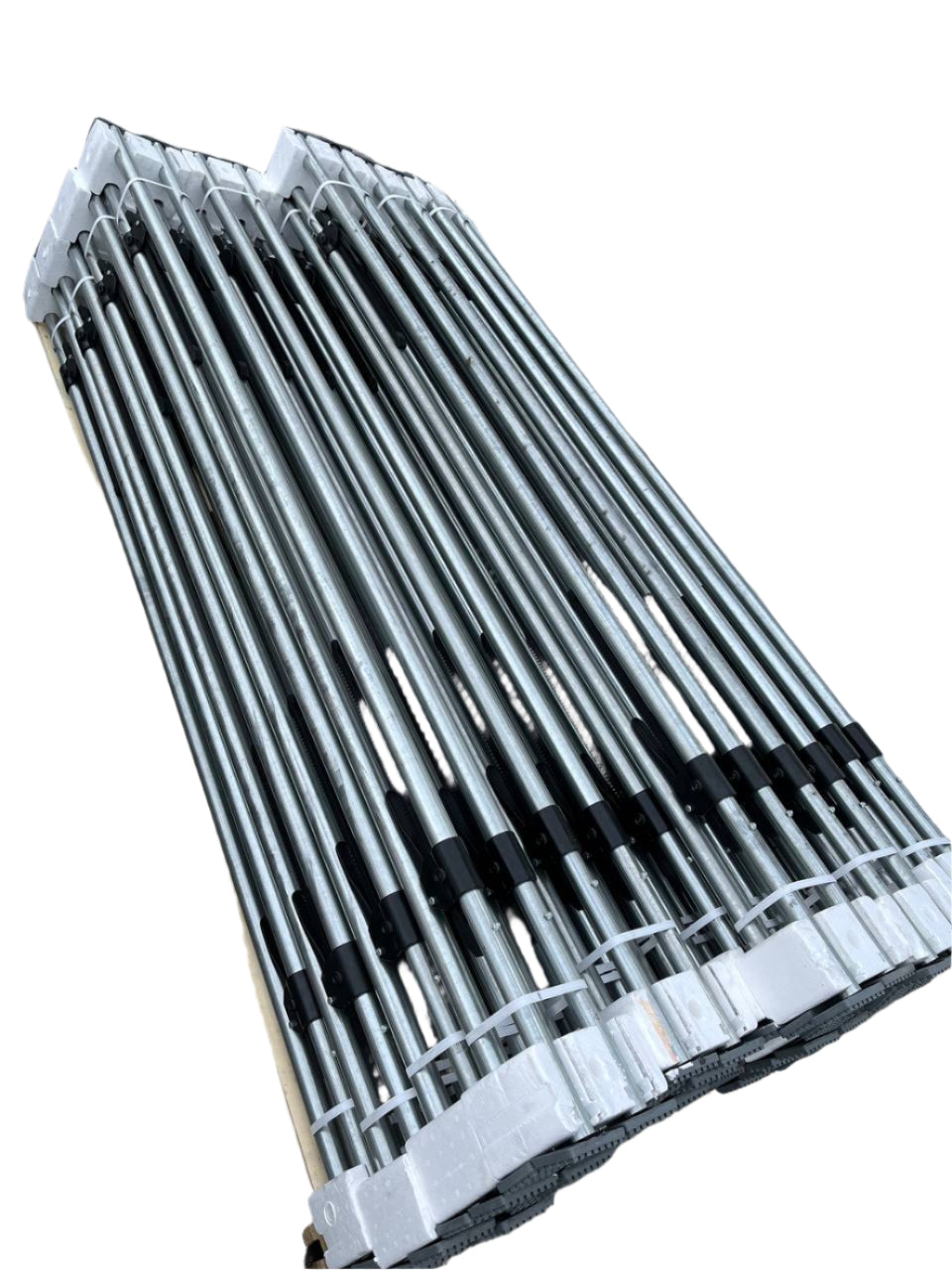

A banded bundle of load lock bars seen diagonally from above, black ratchets midway and white foam blocks at both ends.

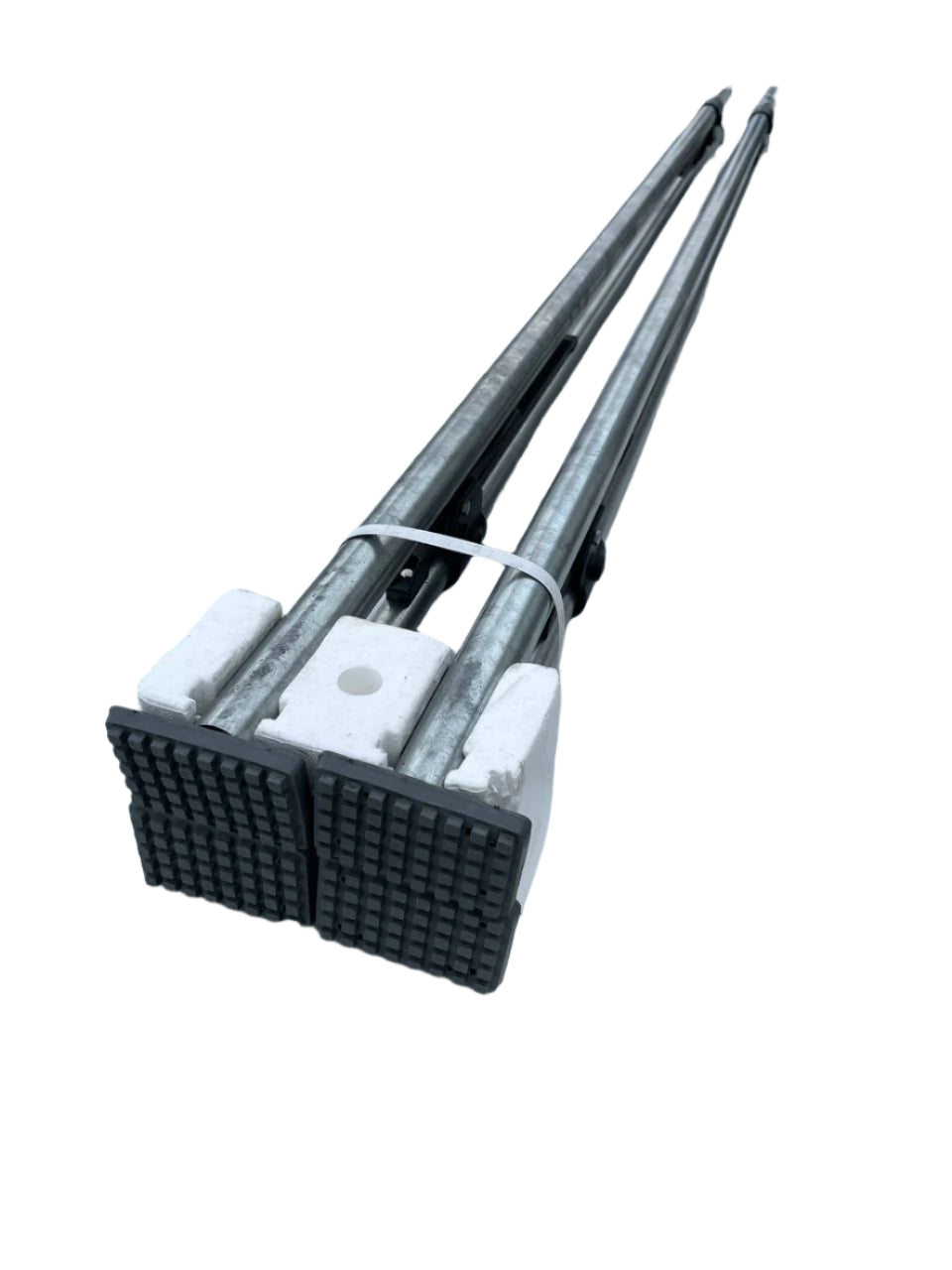

Studded rubber foot pads on two banded load lock bars, white foam blocks around them, the bars stretching into the distance.

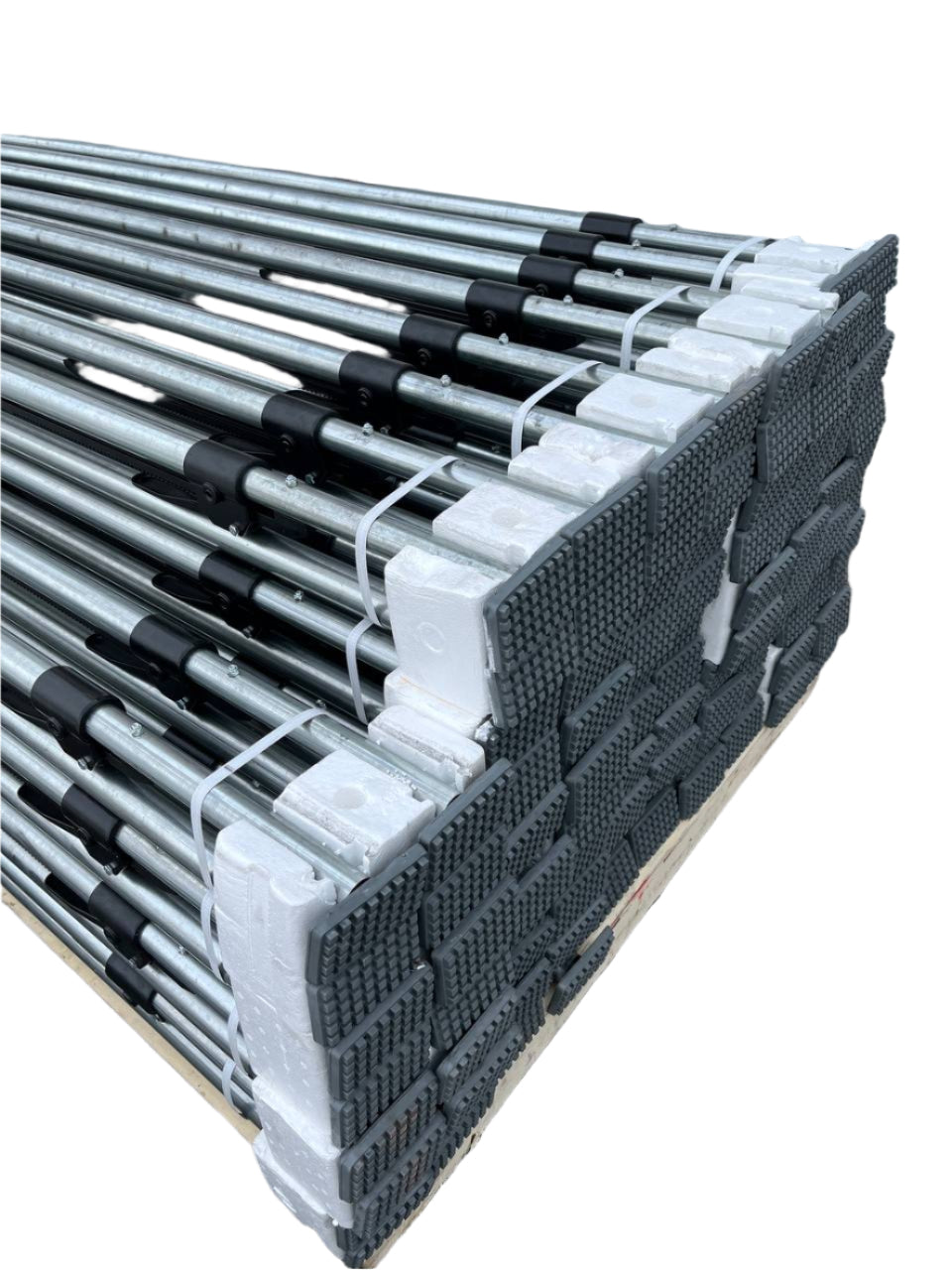

Corner of a banded load lock bar bundle, rows of black ratchets along the bars and studded foot pads stacked at the end.

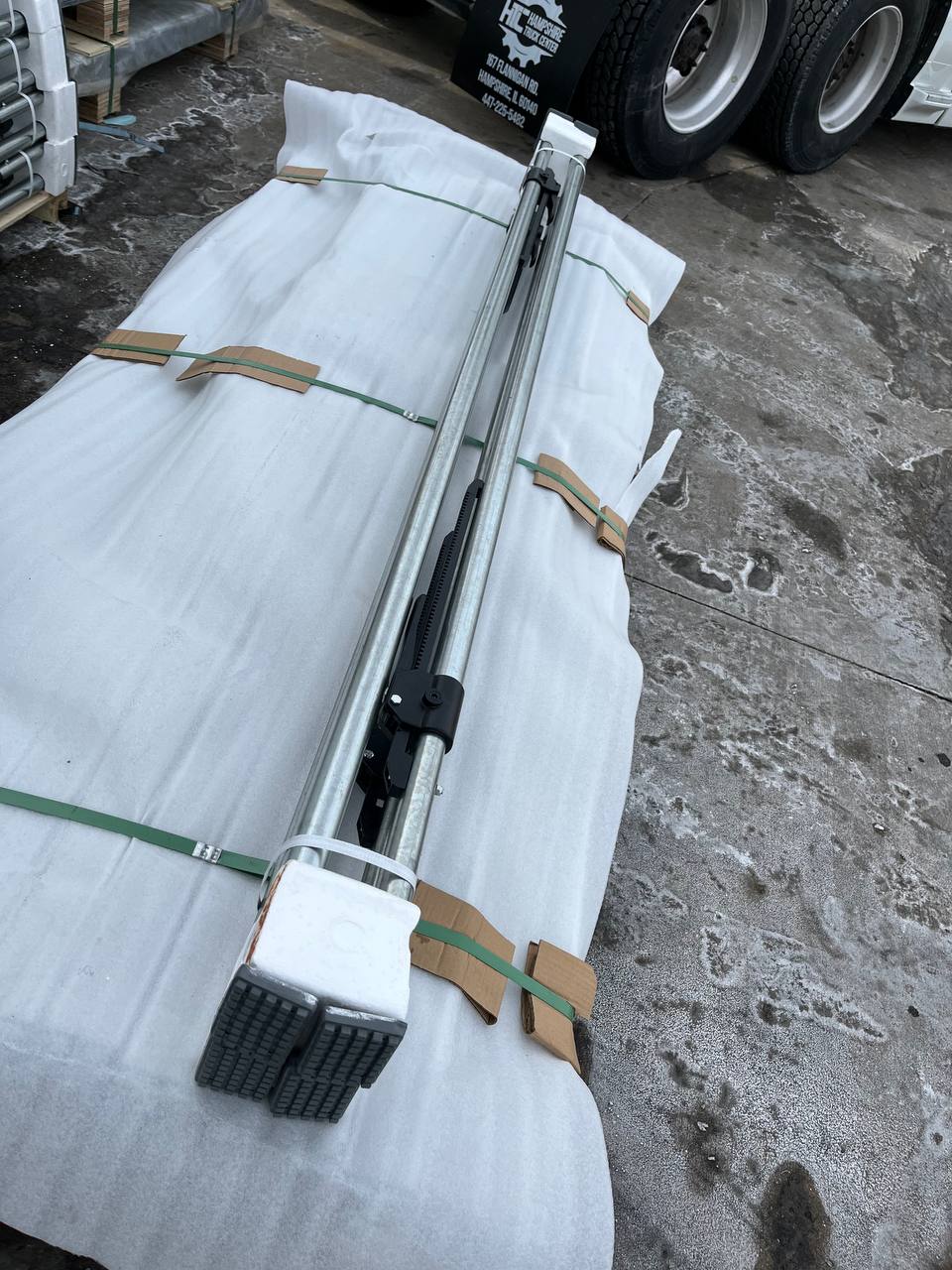

Two banded load lock bars lying on a foam-wrapped bundle with green straps and cardboard corners, truck tires behind.

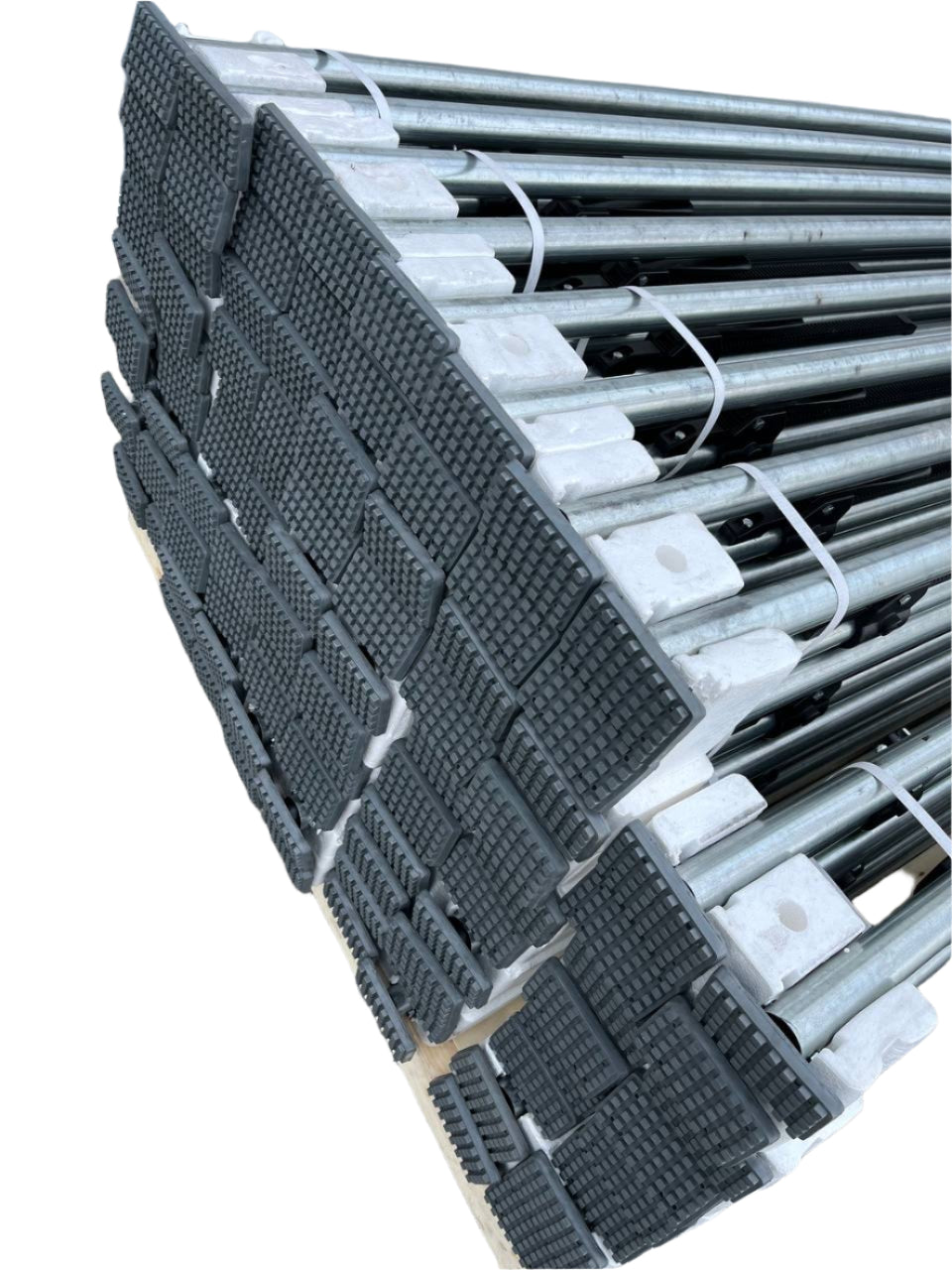

Close-up of a bundle end: rows of studded rubber foot pads stacked between white foam blocks and plastic bands.

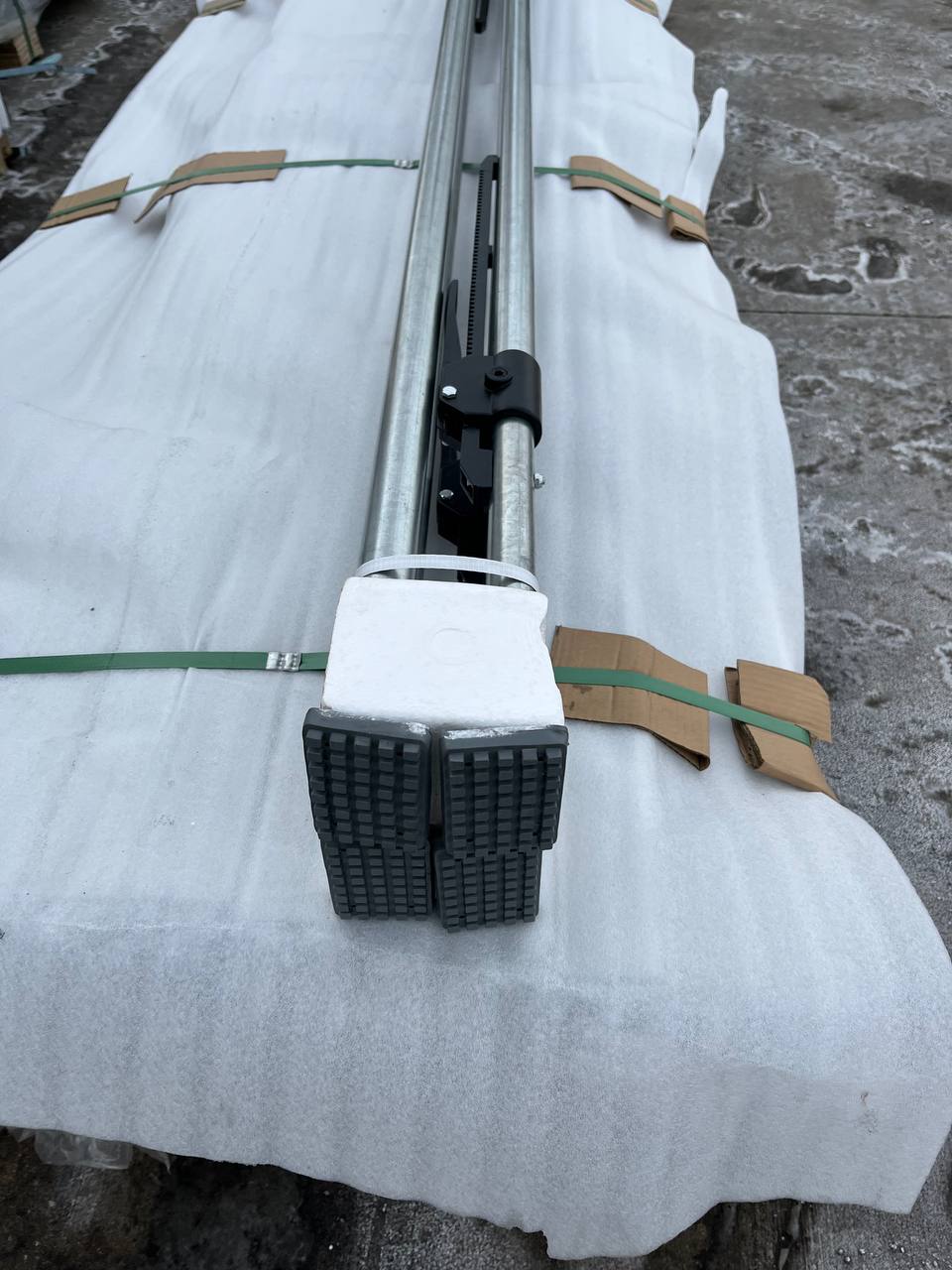

Black ratchet and toothed track on two banded load lock bars, with a foam cap over the foot pads, on white foam wrap.

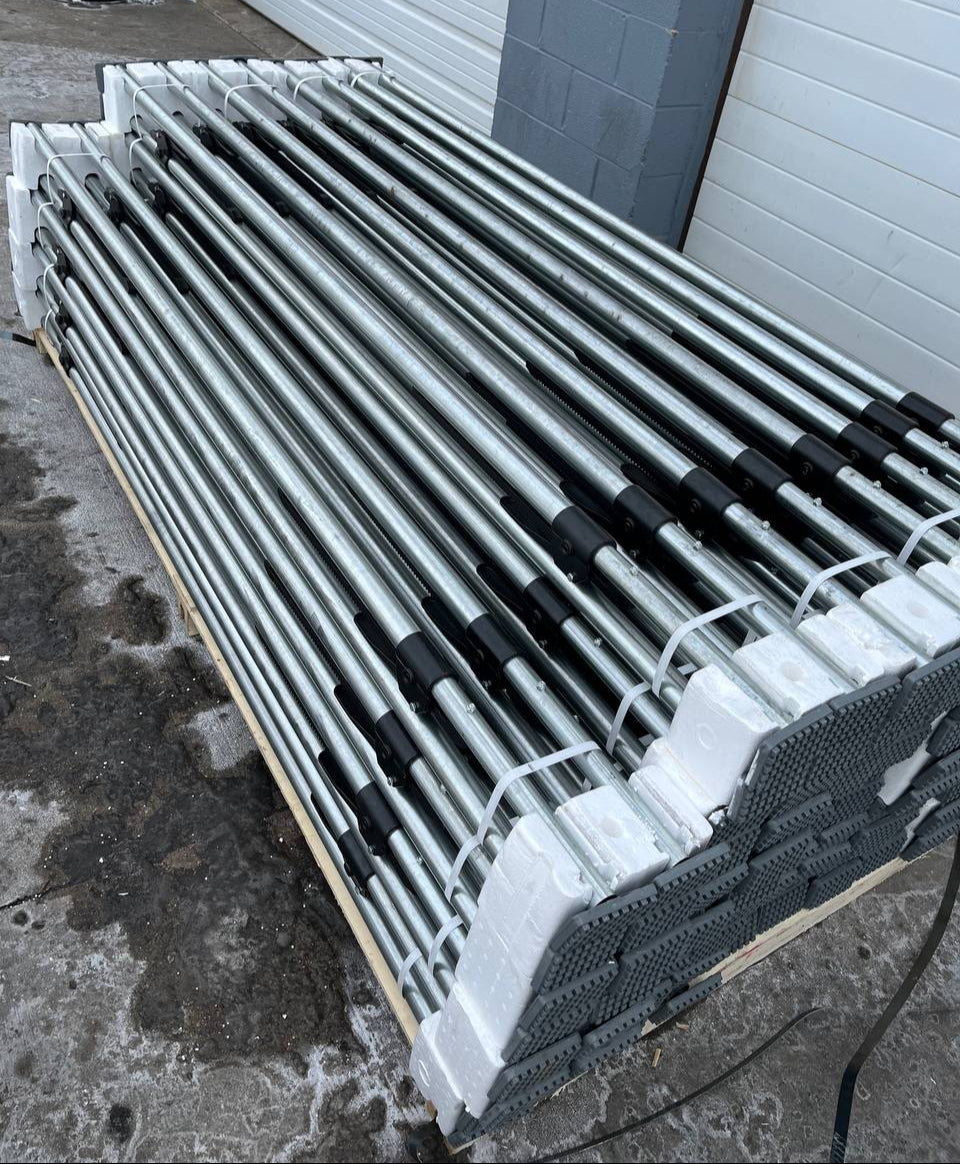

A pallet stacked with load lock bars outside a white garage door, foam blocks and foot pads at the near end.

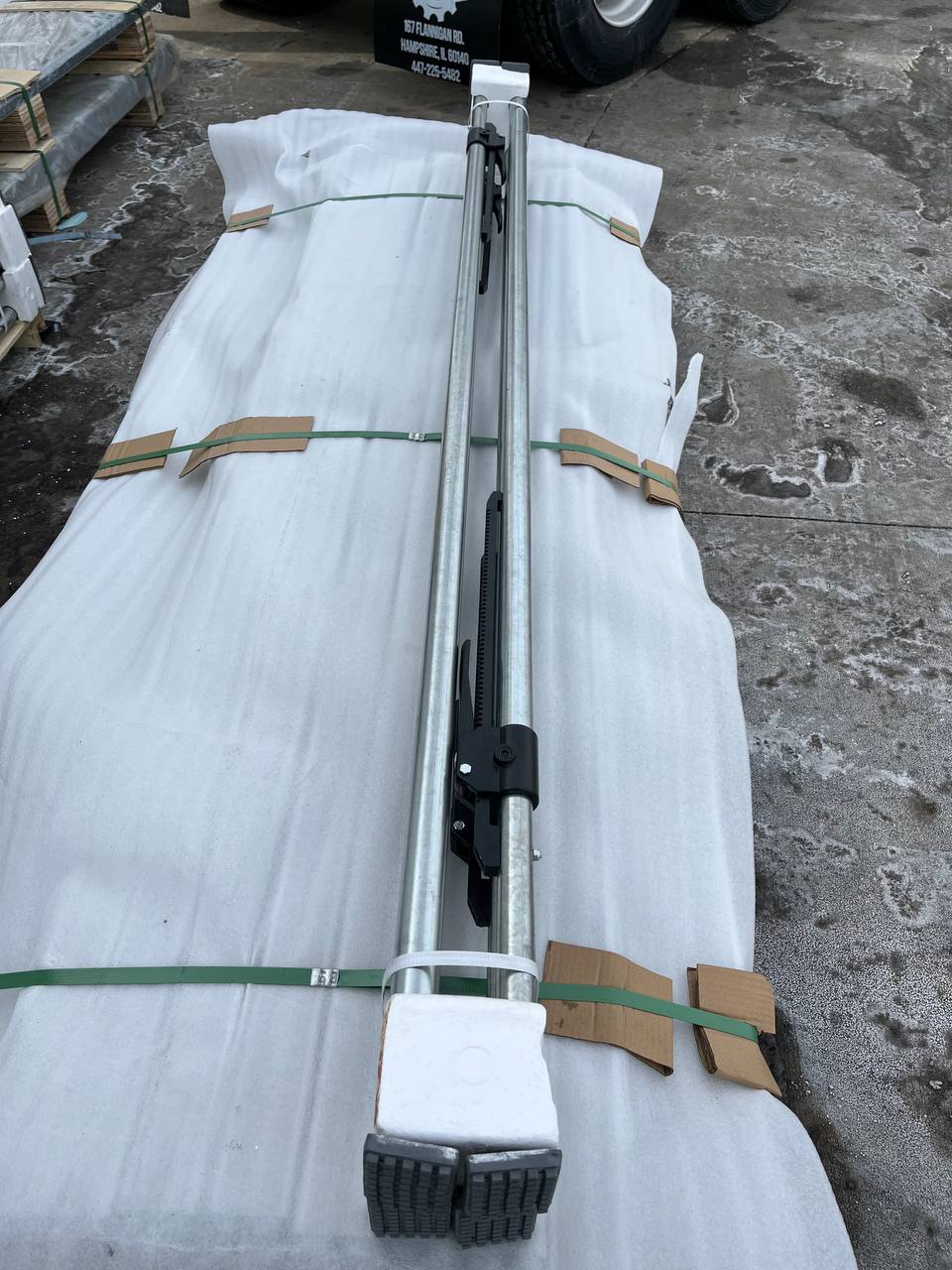

Top-down view of two banded load lock bars at full length on a foam-wrapped bundle, foot pads at the near end.

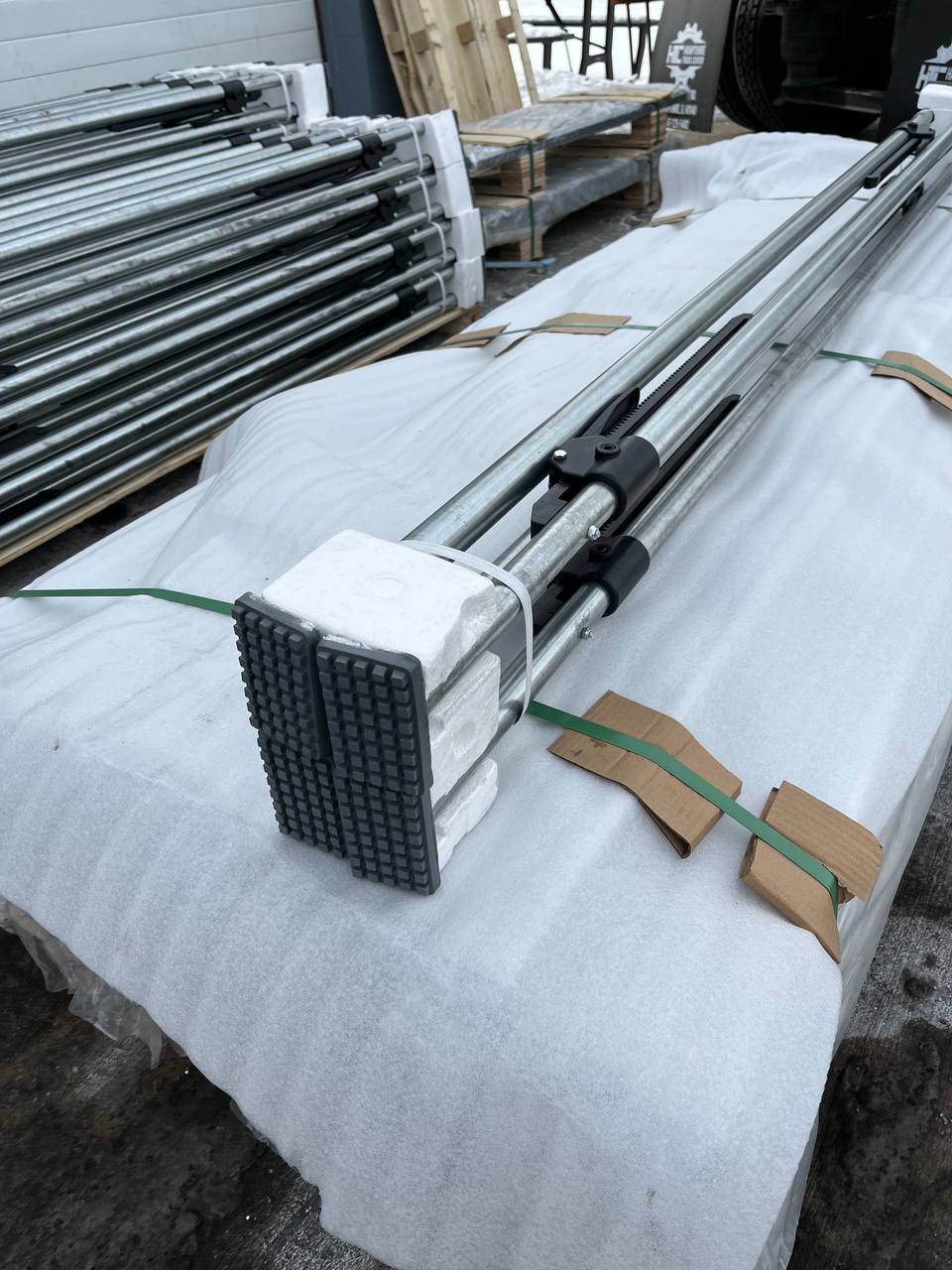

Foot pad end of two banded load lock bars with their black ratchets, stacks of bundled bars on pallets behind.

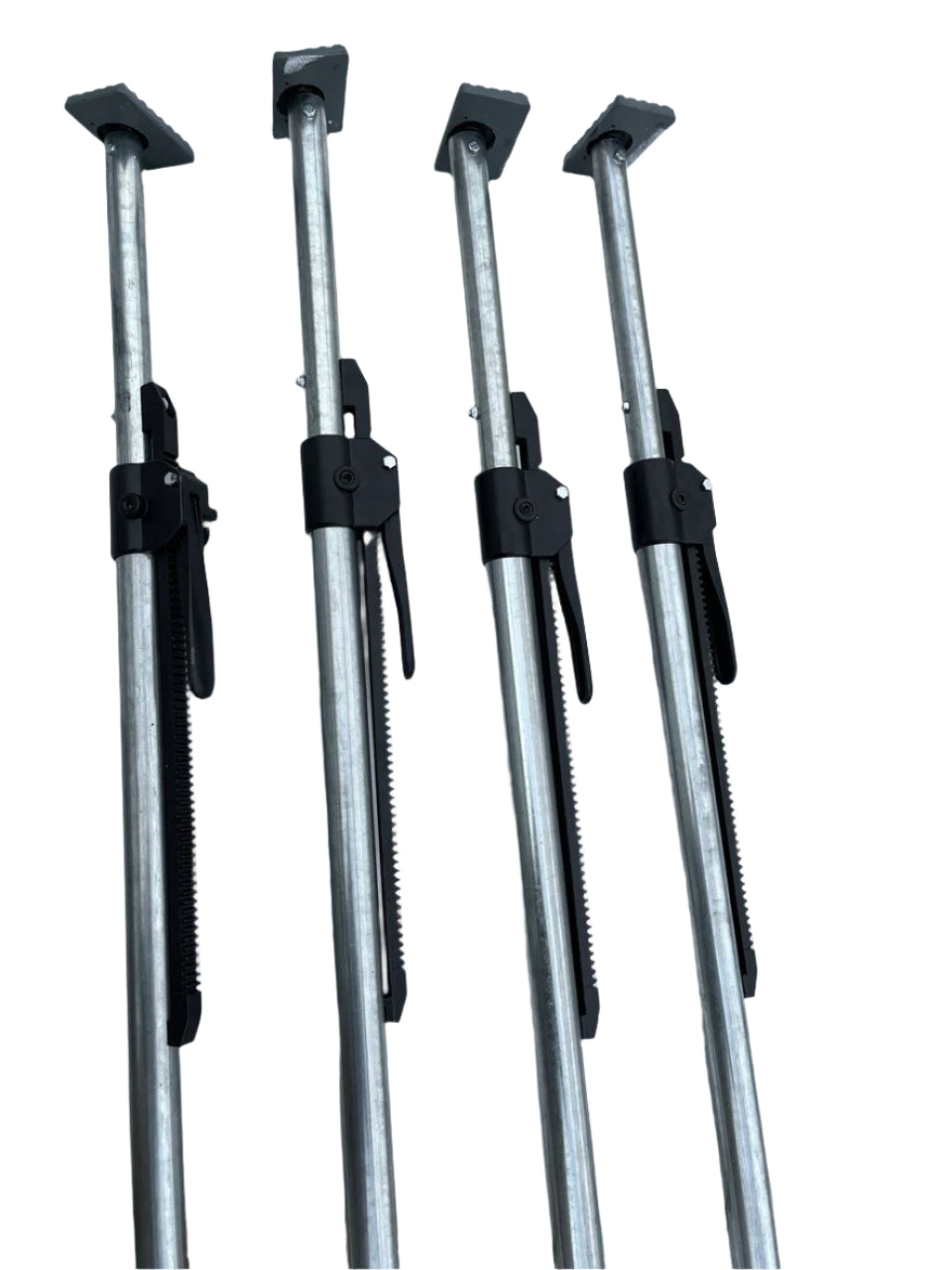

Four load lock bars side by side on white, each with a gray foot pad on top and a black ratchet and toothed track below.

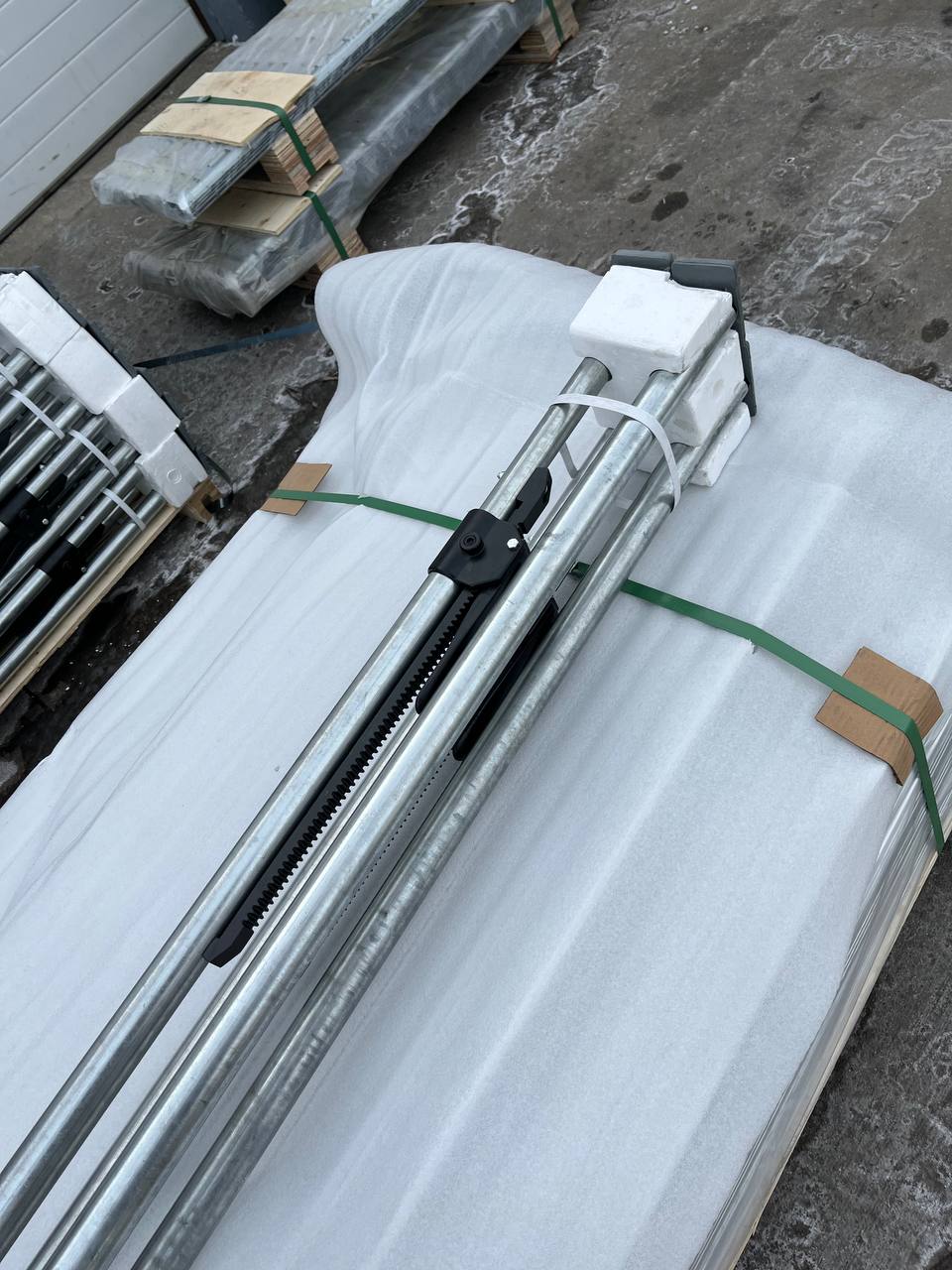

Ratchet and long toothed track on banded load lock bars, a foam block over the far foot pads, pallets in the background.

Four load lock bars laid on a strapped, foam-wrapped bundle, ratchets near the top and foot pads at both ends.

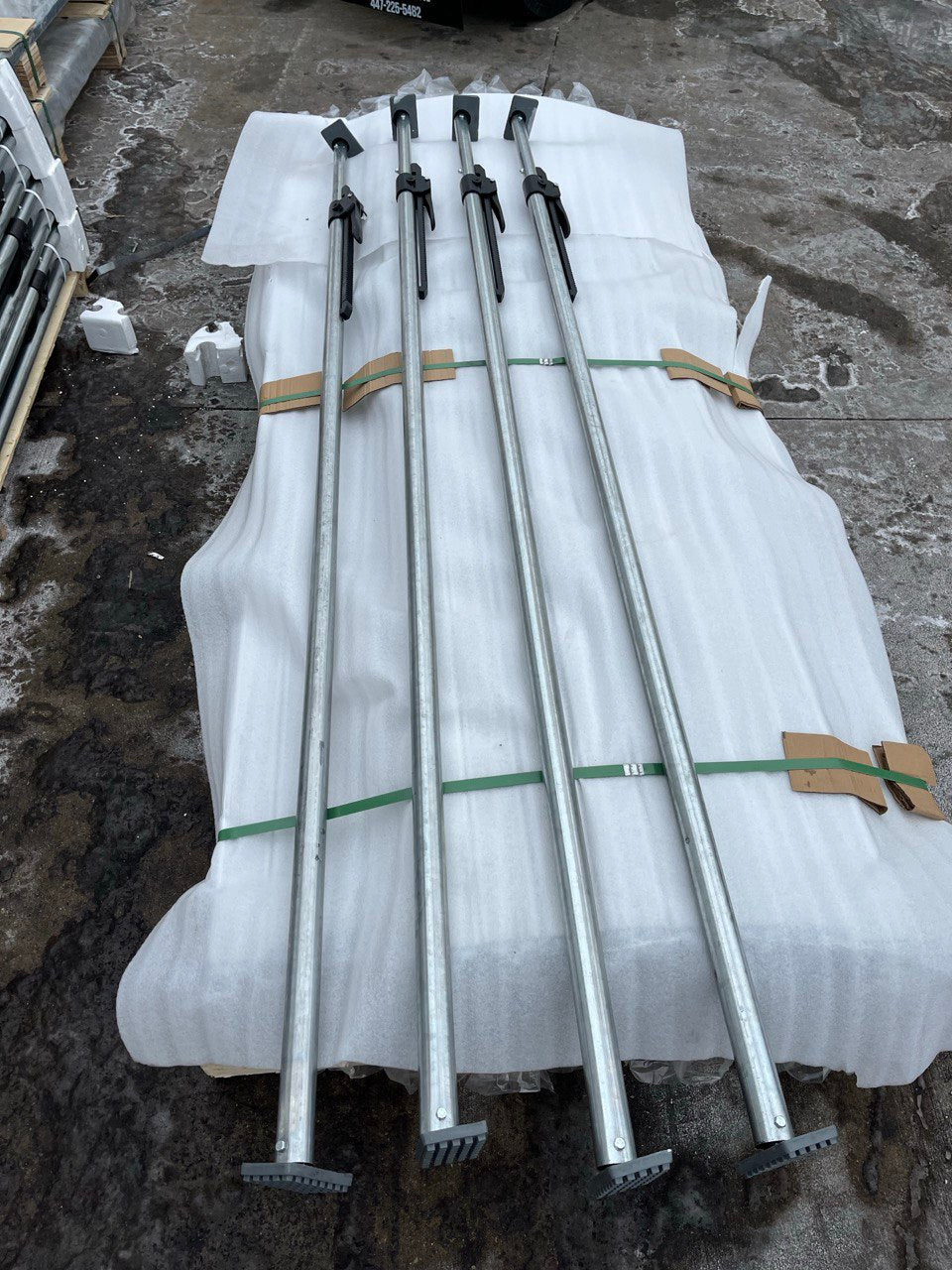

Four load lock bars lying side by side on a foam-wrapped bundle on wet pavement, ratchets toward the top end.

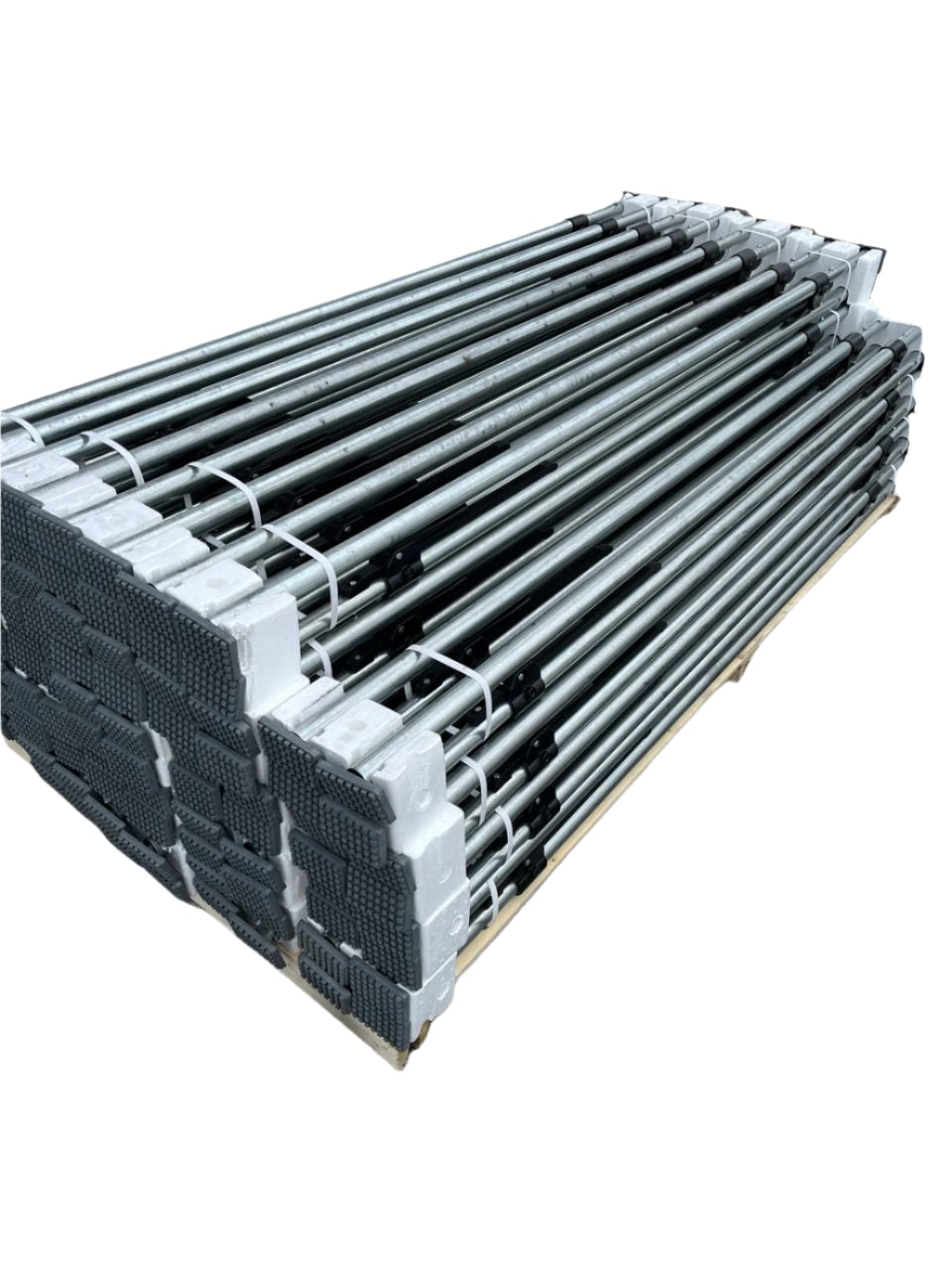

A full pallet of load lock bars banded together, foot pads facing the camera and ends secured with foam.

1 / 15

$19.75

SKU: DV-GST-CC Out of Stock

Ratcheting steel load lock bar, 89-3/4" to 104-1/2". Braces cargo inside dry vans with no track and no bolts. 10.5 lbs.

In stock now in LOAD BARS, SHORING BEAMS & E-TRACK

5 ft Vertical E-Track Rail — 12-Gauge Galvanized Steel $12.75 See all LOAD BARS, SHORING BEAMS & E-TRACK →

Shipping Policy Return & Refund Policy

Often Bought Together

72in x 80in Non-Woven Moving Blanket — Economy Grade

Pads the freight the bar holds in place

$6.65

5 ft Vertical E-Track Rail — 12-Gauge Galvanized Steel

Bolts to the van wall when a load needs a strap anchor

$12.75

5.0 62 Google reviewsView on Google

Field-Tested, Not Just Listed Every product in our catalog runs on real flatbed loads before it ships.

About This Product

A cargo load lock bar braces freight inside a dry van without a track, a bolt or a strap. You plant one end against the wall, ratchet the bar out, and the two rubber pads grip the sidewalls hard enough to stop a pallet walking forward under braking. Closed, the bar measures 89-3/4 inches. Extended, it reaches 104-1/2 inches, which covers standard 53-foot van width and most container interiors. The 1-1/2 inch tube is galvanized steel, so it takes daily loading without rusting out in a wet trailer.

Drivers reach for a load lock when the trailer is half full and the load needs a wall behind it. Two bars across the back of a partial load hold it through a hard stop. One bar between the nose and the first pallet stops the load sliding forward. Most vans carry two to four. No pallet minimum here: the price on one bar is the price on twenty. At 10.5 lbs you set each bar at chest height without a second person. Ordering for a mixed fleet? This one matches Ancra 4840710, Kinedyne 10085, Automann 573.HSCB2 and the CB301, EN801 and PR801R aftermarket numbers, so a single part number covers every trailer in the yard.

Technical Details

Closed Length 89-3/4"

Extended Length 104-1/2"

Tube Diameter 1-1/2"

Material Galvanized steel

End Pads 2" x 4" rubber, no-slip

Mechanism Ratchet tension

Weight 10.5 lbs

Trailer Type Dry van, enclosed trailer, container

Working Load Limit Not rated (tension-fit bracing)

How To Get It Order online and pick up in Huntley, IL, off I-90 at Exit 47

Parcel Shipping Not available

Key Features

Extends 89-3/4" to 104-1/2"

Covers standard 53-ft van width and most container interiors.

Ratchet Tension Lock

Lift the handle, extend, ratchet down. No track, no bolts, no drilling.

1-1/2" Galvanized Steel Tube

Takes daily loading without rusting out in a wet trailer.

2" x 4" No-Slip Rubber Pads

Spread pressure across the sidewall and hold the bar under load.

Local Pickup in Huntley

Order online and pick it up off I-90 at Exit 47. Pickup is free.

Best For

Trailer

Dry vans, enclosed trailers and containers. No track needed.

Use case

Bracing a partial load so the pallets cannot walk when you brake.

Not for

Tie-down. The bar has no working load limit. Rated straps still do the securing where the load calls for them.

How to get it

Order online and pick up in Huntley, IL. Pickup is free.

Safety Tip

Bracing, not a tiedown. FMCSA defines a shoring bar as a device placed transversely between the walls of a vehicle and cargo to prevent tipping or shifting (49 CFR 393.5). It holds by tension against the sidewalls and carries no working load limit. The aggregate working load limit rule in 49 CFR 393.106(d) applies to tiedowns, so a load lock bar does not count toward it. Where the load calls for rated tiedowns, use them alongside the bar; 49 CFR 393.106(b) recognizes both as means of securement.

Truckers · Local pickup only

Pickup hours Mon–Fri 8 AM–6 PM, Sat 9 AM–1:30 PM CT

Pickup is free. This item is out of stock right now, so call before you drive over. From the exit it's 8–9 minutes to our door, with room out back to turn a 53′ around.

Get directions Call (224) 806-3123

See the route from Exit 47Hide the route

From Exit 47 8–9 min 3.4–3.8 miles

Exit 47 off I-90, then north on IL-47
Right on Kreutzer Rd
Left on Smith Dr
Left on Allison Ct, a dead endLook for the Cargo Control Center sign.
11451 Allison Ct Ste 6, Huntley, IL 60142Pull up, walk in, grab it.

Mon–Fri: 8 AM–6 PM
Sat: 9 AM–1:30 PM
Sun: Closed

Central time

Too far to drive in? On a large order, call us about delivery
